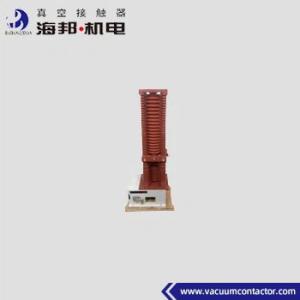

Hai Bang Plateau type Single phase vacuum contactor are suitable for power systems with AC 50~60Hz, main circuit rated voltage 40.5kV, and rated current 160A, 250A, 400A, 630A. JCZ1 Single phase vacuum contactor is mainly used as a grounding switch when a single-phase ground fault occurs. JCZ1 Single Phase AC Vacuum Contactor is used in arc suppression cabinets and electrical occasions that require single-phase control. The altitude of the environment where the Single phase vacuum contactor Plateau type is used does not exceed 5000 meters above sea level, thus it is a plateau type vacuum contactor.
Types:
JCZ1-40.5TG/D-160
JCZ1-40.5TG/D-250
JCZ1-40.5TG/D-400
JCZ1-40.5TG/D-630
Application Condition:
1. Ambient Air Temperature: -25℃～+40℃,24-hour average must NOT exceed +35℃;
2. Altitude: 5000m or Lower; Our patent shows the JCZ1 plateau type single phase vacuum contactor can operate safely and stably within an altitude of 5000m above sea level.
3. Relative Humidity: Daily average less than 95%, Monthly average less than 90%, Must NOT exceed 50% when Ambient Air Temperature reaches +40℃;
4. Operation Environment: Ambient air shall not be contaminated by corrosive, flammable or explosive gas and water vapor, Contamination Level: Level III；
5. Installation of single phase plateau type vacuum Contactor:
When operating, the tilt angle between the surface of installed plateau type single phase vacuum contactor and the horizontal plane shall NOT exceed 5°.
Note: In case the above conditions cannot meet the user's requirements, the user can negotiate with the manufacturer for special treatment of the product.
Technical Data:
|
Name
|
Unit
|
Value |
|
Main circuit
|
Rated working voltage (Ue) |
kV
|
40.5
|
| Rated working current (Ie) |
A
|
160, 250, 400, 630 |
| Rated frequency (fr) |
Hz
|
50~60 |
| Rated connecting capacity |
A
|
10Ie (AC-2) |
| Rated breaking capacity |
A
|
8Ie (AC-2) |
| Ultimate breaking capacity |
kA, time
|
6.3, 3 |
| Rated short time withstand current |
A
|
10Ie |
| Rated peak withstand current |
A
|
25Ie |
| Rated short circuit duration |
s
|
4 |
| Power frequency withstand voltage |
Wiring terminal to earth
|
kV
|
95
|
|
Vacuum breaks
|
kV
|
95 |
| Lightening impulse withstand voltage |
kV
|
185 |
|
Control circuit
|
Rated voltage (Us)
|
V
|
AC 110/220/380
|
| DC 110/220 |
| Rated power (Ps)electric holding |
VA
|
≤1000/100 (absorbing/holding) |
|
Auxiliary circuit
|
Form
|
|
3a+3b
|
| Rated value |
|
AC 380V/5A |
| DC 380V/1A |
|
Control circuit, auxiliary circuit to earth power frequency withstand voltage
|
kV
|
2 |
|
Rated operating frequency
|
Long-term
|
time/h
|
120
|
|
Short-term
|
time/h
|
360 |
|
Mechanical endurance
|
10000 times
|
3 |
|
Electrical endurance
|
10000 times
|
25(AC-3), 10(AC-4) |
|
Mechanical characteristics
|
Closing time |
ms
|
≤200
|
| Original opening time |
ms
|
≤100 |
| Closing tripping |
ms
|
≤10 |
|
Remark: Rated control voltage can be made according to customer’s requirements.
|
