Low Voltage Single Phase Vacuum Contactor 3.6kV Vacuum Contactor

Contact Now

Single Phase 3.6kV Vacuum Contactor - Single phase vacuum contactor, rated voltage 1140V-3.6kV, rated current 3200A

General Description:

Hai Bang Single Phase 3.6kV Vacuum Contactor – Type CKJ1-3.6D/D3200 is suitable for AC 50~60Hz power systems, main circuit rated voltage 1140V-3.6kV, rated current 3200A. This type of Single Phase Vacuum Contactor is mainly used as a grounding switch when a single-phase ground fault occurs. Single Phase 3.6kV Vacuum Contactor is used in electrical occasions that require single-phase control. The altitude of the environment where the 3.6kV Single Phase Vacuum Contactor is used does not exceed 1000 meters above sea level.

Technical Data:

ame					Unit	Value
Main circuit	Rated working voltage (Ue)				kV	1.14-3.6kV
	Rated working current (Ie)				A	3200
	Rated frequency (fr)				Hz	50~60
	Rated connecting capacity				A	4Ie (AC-4)
	Rated breaking capacity				A	4Ie (AC-2)
	Ultimate breaking capacity				kA	5
	Rated short time withstand current				A/s	4Ie/10
	Power frequency withstand voltage		Wiring terminal to earth		kV	4.2
			Vacuum breaks		kV	10
	Lightening impulse withstand voltage				kV	8
Control circuit		Rated voltage (Us)			V	AC 110/220/380
						DC 110/220
		Rated power (Ps) electric holding			VA	≤1000/100 (absorbing/holding)
Auxiliary circuit				Form		(3a+2b)
				Rated value		AC 380V/5A,
						DC 380V/1A
Control circuit, auxiliary circuit to earth power frequency withstand voltage					kV	2
Rated operating frequency				Long-term	time/h	300
				Short-term	time/h	600
Mechanical endurance					10000 times	100
Electrical endurance					10000 times	25 (AC-2)
Mechanical characteristics		Closing time			ms	≤200
		Original opening time			ms	≤150
		Closing tripping			ms	≤5
Remark: rated control voltage can be made according to customer’s requirements.

Product Tags:

Single Phase Vacuum Contactor 3.6kV

Low Voltage Single Phase Vacuum Contactor

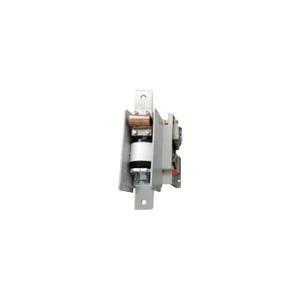

Low Voltage Single Phase Vacuum Contactor 3.6kV Vacuum Contactor Images
